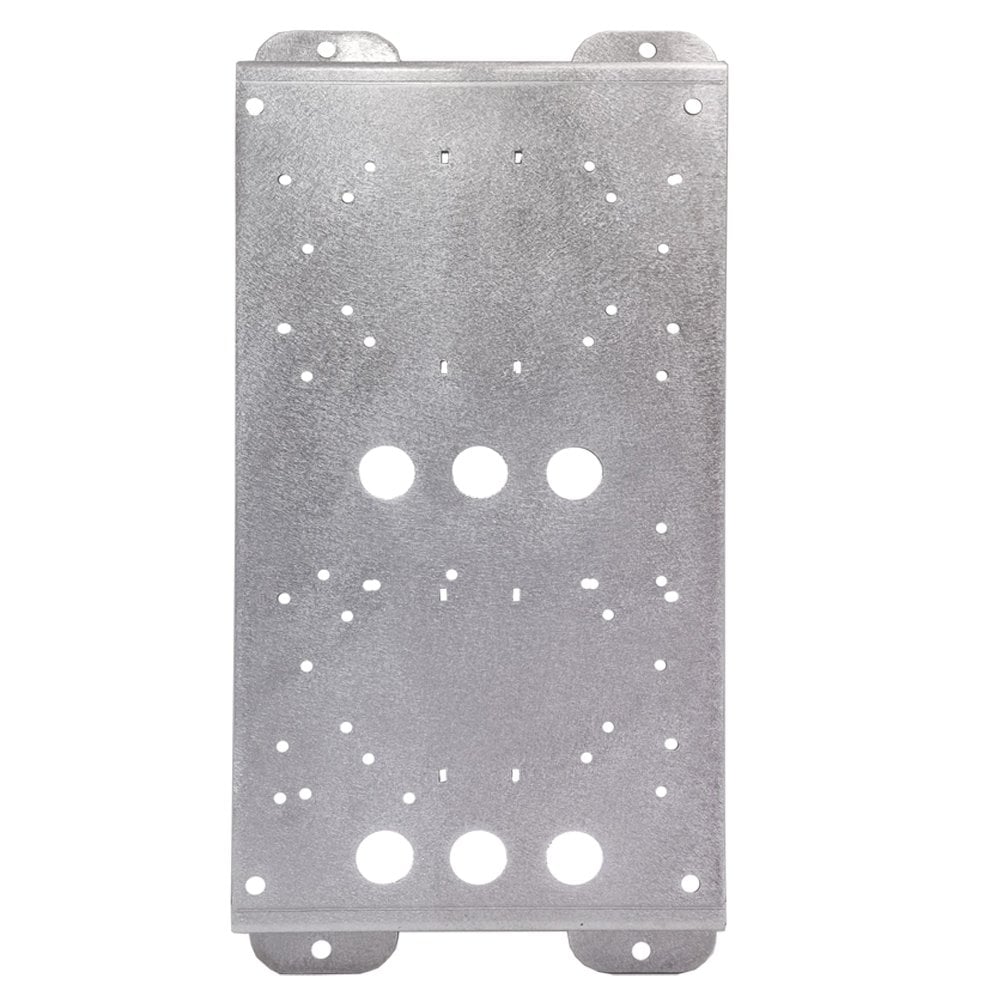

Victron Campervan Aluminium Modular Mounting System For SmartSolar, Smart Chargers and SmartShunt | Starter Kit Module A The Victron Modular Mounting System has been designed for home builders and professionals to enable you to quickly and easily attach your Victron Energy Devices to a mounting plate. This will let you easily pre-wire your system outside of the vehicle, then installing into your electrical cupboard with 4 easy mounting holes. The Starter Module  Kit comes with a complete fitting kit including all relevant nuts, bolts and grommets. Save time and keep your installation neat, tidy and safe.  Features of The Butler Technik Modular Mounting System Precision laser Cut Professional Grade Installation Lightweight Robust Solution 0.75kg Corrosion Resistant 3mm Aluminium Extendable - Additional Modules Unique Slot and Bolt Design for adding Extra Modules Multiple Configurations of devices M8 Stud for Common Negative 25mm Holes for Cable Runs Including Grommets Innovative off-set mount design for air flow and cable runs Slots for Cable ties to secure your Cables and keep things neat and tidy Easy to drill Aluminium -  when extra holes maybe needed Dimensions 470mm x 220mm x 35mm   What's included Aluminium Modular Mount Plate Fixing Kit for Devices and Common Negative Instructions Possible Configurations of Victron Energy Devices Top Set of Holes suitable for one of the following Any Orion-Tr DC-DC Converter or Smart Charger Any BlueSolar or SmartSolar MPPT up to 150/45 Bottom Set of Holes Suitable for one of the following Any Orion-Tr DC-DC Converter or Smart Charger Any BlueSolar or SmartSolar MPPT up to 150/45 OR Bottom Set of Holes for One of the Configurations Below 75/15 SmartSolar MPPT with 500amp SmartShunt 6-Way Mega Fuse Holder with 500amp SmartShunt SmartShunt and Two Single Mega Fuse Holders 75/15 SmartSolar MPPT with 500amp Smart Shunt and Single Mega Fuse Holder Level Up Your Installation with The Victron Modular Mounting System Images That show devices are for reference only, devices are not included

More information

More Information

Table of Contents

• Why it matters
• Features & benefits
• Key specifications
• Usage & maintenance
• Frequently Asked Questions

Why it matters

The Butler Technik Victron Campervan Mount Plate Bracket is essential for anyone looking to install Victron Energy devices in their campervan or vehicle. This mounting system simplifies the installation process, allowing for a clean and organized setup. Whether you are a professional or a DIY enthusiast, this product helps ensure that your electrical components are securely mounted and easily accessible.

Quick overview

• Designed for Victron Energy devices
• Lightweight and robust aluminum construction
• Easy installation with pre-drilled holes
• Includes a complete fitting kit

Features & benefits

The Butler Technik Victron Campervan Mount Plate Bracket offers numerous features that enhance its usability and effectiveness:

Useful details

• Precision Laser Cut: Ensures a professional-grade installation.
• Corrosion Resistant: Made from 3mm aluminum, it withstands the elements.
• Extendable: Additional modules can be added for more configurations.
• Innovative Design: Off-set mount design allows for better airflow and cable management.
• Easy to Drill: Aluminum material makes it simple to add extra holes if needed.

Pros

• Lightweight yet durable construction.
• Easy installation process saves time.
• Neat and organized cable management.
• Versatile configurations for various devices.
• Includes all necessary installation hardware.

Cons

• Devices are not included with the mount plate.
• Specific compatibility with Victron devices may limit use.
• Installation may require basic tools.

Key specifications

While specific technical specifications are not provided, the following dimensions and features are highlighted:

• Weight: 0.75 kg
• Dimensions: 470mm x 220mm x 35mm
• Material: 3mm Aluminum

Usage & maintenance

To ensure the longevity and effectiveness of the Butler Technik Victron Campervan Mount Plate Bracket, consider the following tips:

• Regularly check the mounting screws and bolts for tightness.
• Inspect for any signs of corrosion or wear, especially if exposed to harsh weather.
• Keep the area around the mount plate clean to prevent dust and debris buildup.
• Follow the installation instructions carefully to ensure proper setup.

Frequently Asked Questions

• What devices are compatible with this mount plate?
  It is suitable for various Victron Energy devices, including Orion-Tr DC-DC converters, Smart Chargers, and SmartSolar MPPTs up to 150/45.
• Is the installation kit included?
  Yes, the Starter Module Kit comes with a complete fitting kit, including all necessary nuts, bolts, and grommets.
• Can I add more modules later?
  Yes, the mount plate is extendable, allowing for additional modules to be added as needed.
• How heavy is the mount plate?
  The mount plate weighs approximately 0.75 kg.
• Is it easy to drill additional holes?
  Yes, the aluminum material is easy to drill if you need to add extra holes.
