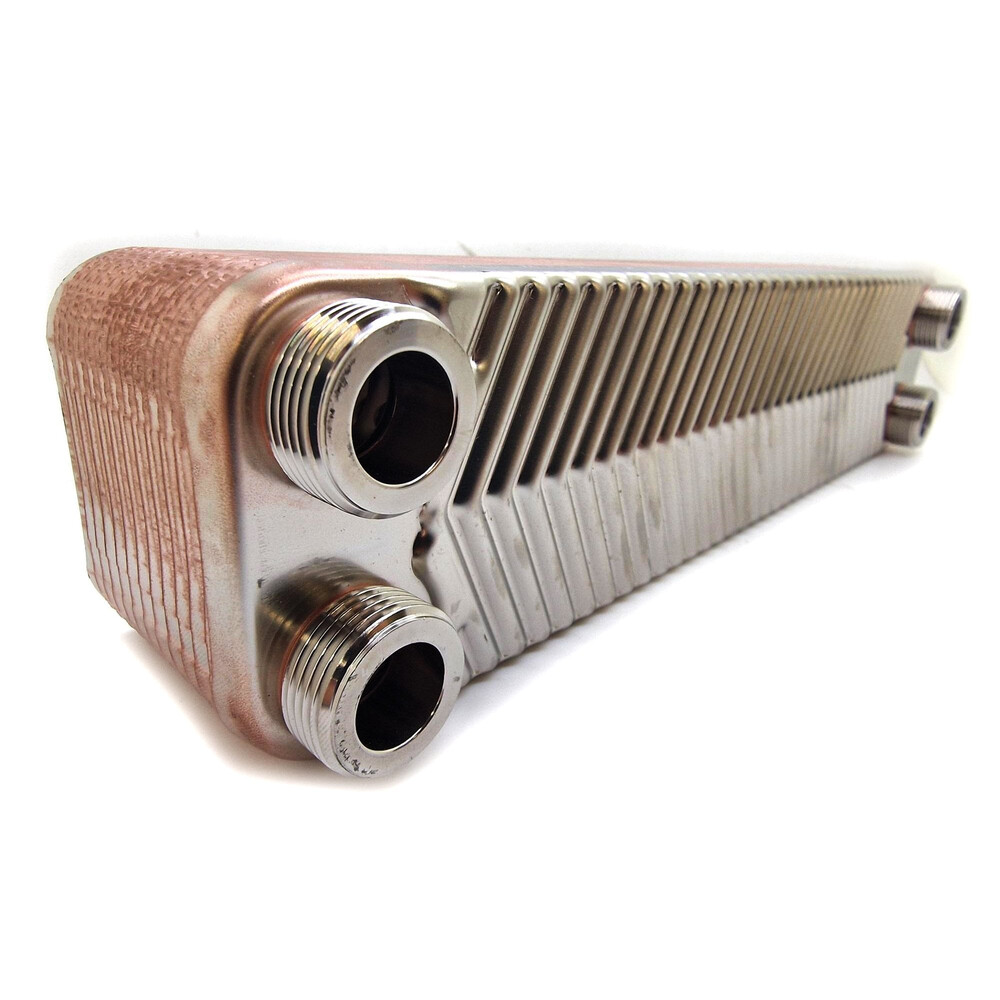

Butler Technik Counter Flow 24 Plate Heat Exchanger for Webasto or Eberspacher Hot Water Systems, Car Parts

Car Accessories

Plate Counter Flow Heat Exchanger to Suit Eberspacher or Webasto Hot Water Systems Premium Quality Swep 3/4 BSP Threaded Connections  Copper and Stainless Construction High Efficiency  Counter Flow Technology 24 Plates Heat Exchange takes place using counter flow technology, opposite directional flow between liquids. on independent circuits ensuring coolant and water circuits are kept separate and free from contamination. Providing a constant supply of hot running water.  Large High efficiently flow control veins help to maximise the liquids conversion rate between the Copper and Stainless Braised plates. whilst the vacuum braising technology ensures the separate circuits stay clean and safe. Suitable for the Following Heating Systems Eberspacher D5WSC Eberspacher Hydronic S3 D5E Webasto Thermo Top C Webasto Thermo 90ST and all other Water Heaters

More information

More Information

Table of Contents

• Why it Matters
• Features & Benefits
• Key Specifications
• Usage & Maintenance
• Frequently Asked Questions

Why it Matters

The Butler Technik Counter Flow 24 Plate Heat Exchanger is an essential component for those utilizing Eberspacher or Webasto hot water systems. Its design ensures efficient heat transfer, which is crucial for maintaining optimal temperatures in various applications, particularly in automotive and marine environments. Understanding the importance of a high-quality heat exchanger can significantly enhance the performance and reliability of your heating system.

Quick Overview

• Designed for Eberspacher and Webasto hot water systems.
• Utilizes counter flow technology for efficient heat exchange.
• Constructed from copper and stainless steel for durability.
• Features 24 plates for enhanced performance.
• Ensures separate coolant and water circuits to prevent contamination.

Features & Benefits

This heat exchanger offers several features that contribute to its effectiveness:

• Premium Quality Construction: Made from copper and stainless steel, ensuring durability and longevity.
• High Efficiency: The design maximizes heat transfer, providing a constant supply of hot water.
• Counter Flow Technology: This technology allows for opposite directional flow between liquids, enhancing heat exchange efficiency.
• Large Flow Control Veins: These veins help maximize the conversion rate between liquids, improving overall performance.
• Vacuum Braising Technology: Ensures that separate circuits remain clean and safe from contamination.

Useful Details

The Butler Technik heat exchanger is compatible with various heating systems, including:

• Eberspacher D5WSC
• Eberspacher Hydronic S3 D5E
• Webasto Thermo Top C
• Webasto Thermo 90ST
• Other water heaters

Key Specifications

While specific numerical specifications are not provided, the following key points summarize the heat exchanger's capabilities:

• Type: Plate Counter Flow Heat Exchanger
• Connections: 3/4 BSP Threaded
• Number of Plates: 24
• Material: Copper and Stainless Steel
• Technology: Counter Flow

Usage & Maintenance

To ensure optimal performance and longevity of the Butler Technik heat exchanger, consider the following usage and maintenance tips:

• Regular Inspections: Periodically check for any signs of wear or damage.
• Cleanliness: Ensure that the coolant and water circuits remain free from contamination.
• Proper Installation: Follow manufacturer guidelines for installation to avoid issues.
• Monitor Performance: Keep an eye on the system's efficiency and address any drops in performance promptly.

Practical Tips

• Use appropriate fittings and connections to prevent leaks.
• Consider professional installation if you are unfamiliar with heat exchanger systems.
• Keep a maintenance log to track inspections and any issues.

Frequently Asked Questions

Here are some common questions regarding the Butler Technik Counter Flow 24 Plate Heat Exchanger:

• What is the primary function of this heat exchanger?
  It facilitates efficient heat transfer between coolant and water circuits.
• Can it be used with other heating systems?
  It is specifically designed for Eberspacher and Webasto systems but may be compatible with other water heaters.
• How do I maintain the heat exchanger?
  Regular inspections and ensuring cleanliness of circuits are key maintenance practices.
• What materials are used in its construction?
  It is made from copper and stainless steel for durability.
• Is professional installation recommended?
  Yes, if you are not experienced with heat exchanger systems, professional installation is advisable.
