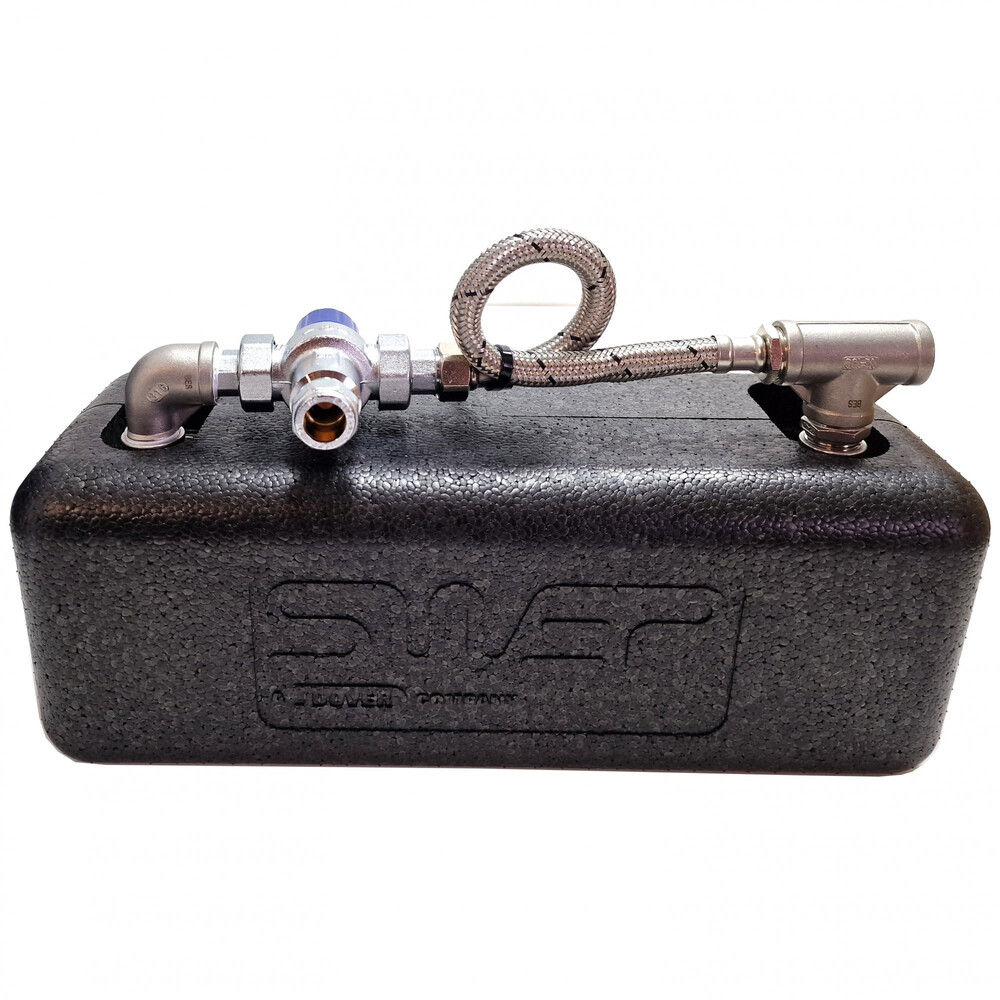

SWEP 24 Plate Heat Exchanger with Thermostatic TMV V2/3 Mixer Valve For instantaneous Domestic Hot Water - Anti - scald for safe use of showers and taps Plate Heat Exchanger System, safely provide highest flow rates to RV and Marine domestic hot water systems High Quality Swep Plate Heat Exchanger Insulation Jacket included Stainless and copper construction  Brass and Stainless Connections TMV 2/3 Mixer Valve  Safely Control Temperature  High Flow 24 Plates Heat Exchange takes place using counter flow technology, opposite directional flow between liquids. on independent circuits ensuring coolant and water circuits are kept separate and free from contamination. Providing a constant supply of hot running water. 3/4" BSP connections. More Plates for a Higher Flow and Economic Heat Transfer. Large high efficiency flow control veins maximise the liquids conversion rate between the Copper and Stainless Braised plates. whilst the vacuum braising technology ensures the separate circuits stay clean and safe. Suitable for the Following Heating Systems Great Upgrade for Chinese Hot water systems Eberspacher D5WSC Eberspacher Hydronic S3 D5E Webasto Thermo Top C Webasto Thermo 90ST Why install insulation jackets for plate Heat Exchangers? The main goal here is to limit the heat loss to atmosphere. Non-insulated plate heat exchangers always lose heat. minimising heat loss will help ensure highest heat transfer to domestic hot water systems. Higher exit temperature from the heat exchanger will allow greater cold water dilution quantity, which will in turn allow higher flow rate at tap or shower head. All plate heat exchangers should ideally be insulated

More information

More Information

Table of Contents

• Why it Matters
• Features & Benefits
• Key Specifications
• Usage & Maintenance
• Frequently Asked Questions

Why it Matters

The Eberspacher Webasto 24 Plate Insulated Heat Exchanger is a crucial component for anyone looking to enhance their hot water systems in RVs and marine applications. This device ensures a reliable supply of hot water while maintaining safety through its thermostatic mixer valve. Understanding its importance can help you make informed decisions about your heating systems.

Quick Overview

• Designed for instantaneous domestic hot water.
• Includes an anti-scald feature for safe use.
• High flow rates suitable for RV and marine systems.
• Constructed from high-quality stainless steel and copper.
• Features a TMV 2/3 mixer valve for temperature control.

Features & Benefits

This heat exchanger is packed with features that enhance its functionality and efficiency. Here are some key benefits:

Useful Details

• High Flow Rate: The 24 plates allow for a higher flow rate, making it ideal for larger systems.
• Counter Flow Technology: This technology ensures that coolant and water circuits remain separate, preventing contamination.
• Insulation Jacket: The included insulation jacket minimizes heat loss, ensuring maximum efficiency.
• Durable Construction: Made from stainless steel and copper, it is built to last.
• Easy Installation: The 3/4" BSP connections make it straightforward to integrate into existing systems.

Key Specifications

While specific technical specifications are not provided, the following features are highlighted:

• 24 plates for enhanced heat exchange.
• Thermostatic TMV V2/3 mixer valve included.
• Suitable for various heating systems, including Eberspacher and Webasto models.
• Counter flow technology for efficient operation.
• Insulation jacket to reduce heat loss.

Usage & Maintenance

To ensure optimal performance of your heat exchanger, consider the following practical tips:

Practical Tips

• Regularly check connections for leaks to maintain efficiency.
• Inspect the insulation jacket for wear and tear to prevent heat loss.
• Monitor the temperature settings on the TMV to ensure safe operation.
• Clean the heat exchanger periodically to prevent buildup that could affect performance.
• Consult the manufacturer’s guidelines for specific maintenance recommendations.

Frequently Asked Questions

Here are some common questions regarding the Eberspacher Webasto 24 Plate Insulated Heat Exchanger:

• What is the purpose of the thermostatic mixer valve?
  The TMV helps control the temperature of the water, ensuring safe usage.
• Can this heat exchanger be used with any heating system?
  It is designed to work with specific models like Eberspacher and Webasto.
• How does the insulation jacket help?
  It minimizes heat loss, improving the efficiency of the heat exchanger.
• What materials are used in its construction?
  It features stainless steel and copper for durability and efficiency.
• Is installation complicated?
  With 3/4" BSP connections, installation is generally straightforward.
