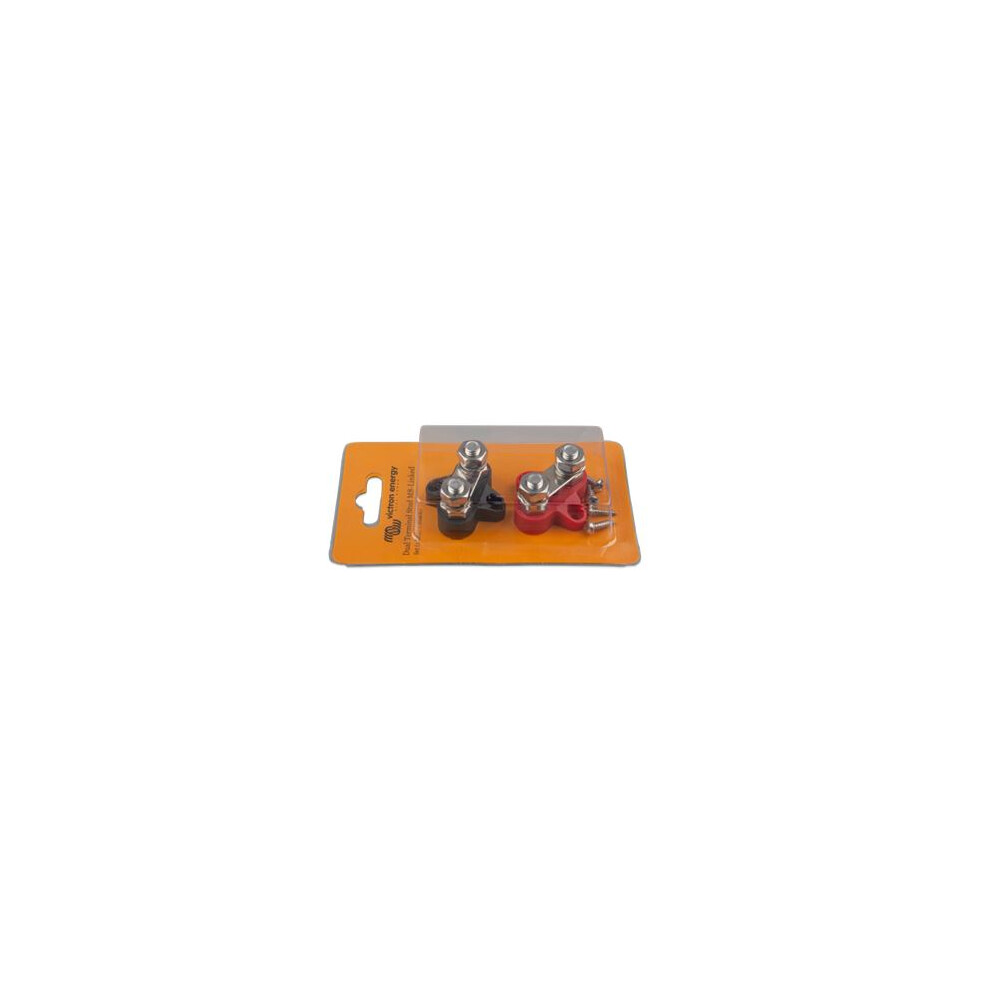

Victron Dual Terminal Stud M8-linked set (1 red/1 black, Car Parts

Car Accessories

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment. We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.  Max 70VDC Max 150A

More information

More information

Table of Contents

• Why it matters
• Features & benefits
• Key specifications
• Usage & maintenance
• Frequently Asked Questions

Why it matters

The Victron Dual Terminal Stud M8-linked set is essential for anyone working with high current distribution in automotive or DC equipment applications. This product ensures safe and efficient connections, which are crucial for the performance and longevity of your electrical systems.

Quick overview

• Includes 1 red and 1 black terminal stud
• Designed for high current distribution
• Max voltage: 70VDC
• Max current: 150A
• Removable protection cover for safety

Features & benefits

The Victron Dual Terminal Stud set offers several features that enhance its usability and safety:

• High Current Capacity: With a maximum current rating of 150A, this busbar can handle significant electrical loads, making it suitable for various applications.
• Voltage Rating: The maximum voltage of 70VDC ensures compatibility with a wide range of DC equipment.
• Removable Protection Cover: This feature adds an extra layer of safety, preventing accidental short circuits and ensuring secure connections.
• Versatile Use: Ideal for battery connections and DC equipment, making it a versatile addition to your car accessories.
• Durable Construction: Designed to withstand the rigors of automotive environments, ensuring long-lasting performance.

Useful details

When considering the Victron Dual Terminal Stud set, it's important to note the following:

• Easy installation process, allowing for quick setup.
• Compact design that fits well in tight spaces.
• Color-coded terminals (red for positive, black for negative) for easy identification.

Key specifications

While specific technical details are limited, the following specifications are noteworthy:

• Max Voltage: 70VDC
• Max Current: 150A
• Terminal Size: M8
• Color: 1 red, 1 black

Usage & maintenance

To ensure optimal performance and longevity of the Victron Dual Terminal Stud set, consider the following tips:

• Regularly inspect connections for corrosion or wear.
• Ensure that the removable protection cover is in place when not in use.
• Follow proper installation guidelines to avoid electrical issues.
• Keep the area around the busbar clean and free from debris.

Practical tips

• Use appropriate tools for installation to avoid damaging the terminals.
• Label your connections for easier troubleshooting in the future.
• Consider using heat shrink tubing for additional insulation.

Frequently Asked Questions

Here are some common questions regarding the Victron Dual Terminal Stud set:

• What is the maximum current this busbar can handle?
  150A
• What is the maximum voltage rating?
  70VDC
• Is it suitable for marine applications?
  Not specified
• Can I use this for solar panel connections?
  Not specified
• How do I maintain the busbar?
  Regularly inspect for corrosion and ensure the protection cover is in place.
