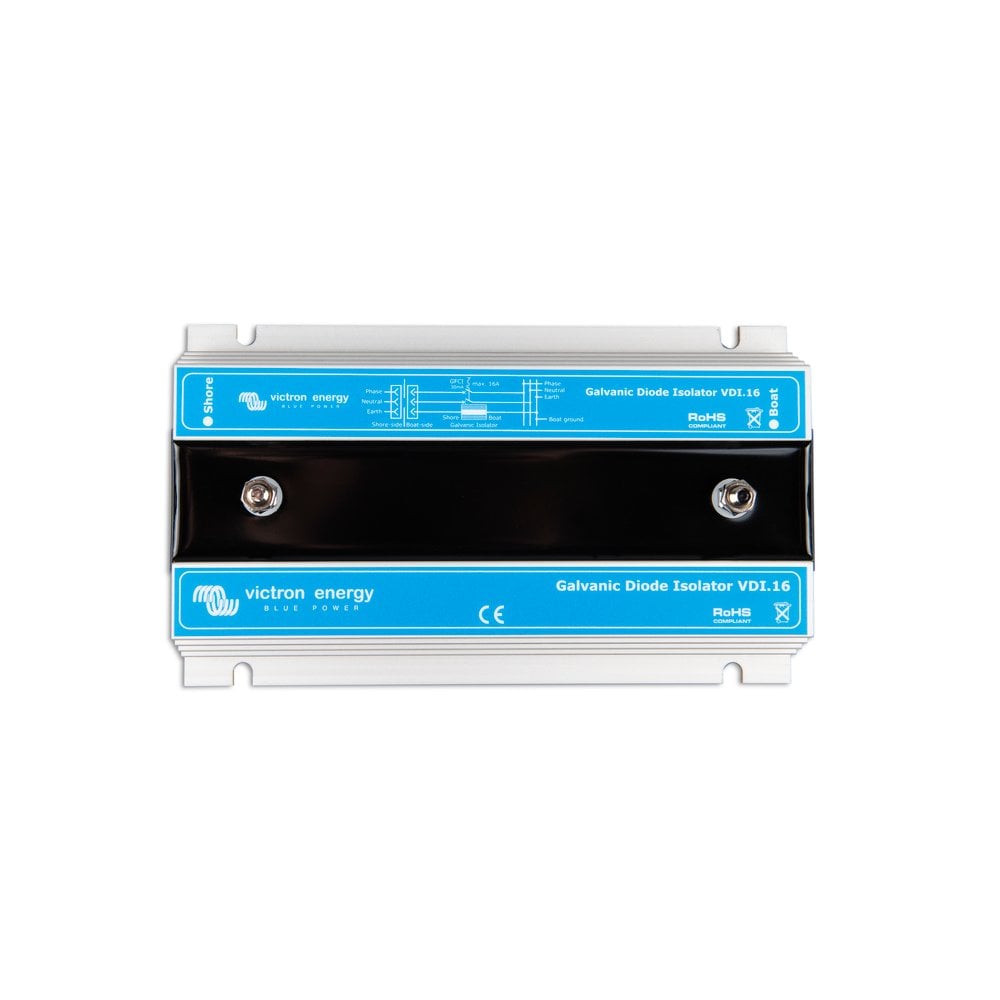

Victron Energy Galvanic Isolator VDI - 16amp The galvanic isolator prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on. The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.  Prevents Electrolytic Current Prevent Corrosion to Boats underwater metals 230v AC Anti-Parallel Diodes  The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit. Part Number - GDI000016000

More information

Why it matters

When it comes to marine environments, protecting your boat from corrosion is crucial. The Victron Energy Galvanic Isolator plays a vital role in preventing electrolytic corrosion that can damage underwater metals. By blocking low voltage DC currents that enter through the shore power earth wire, this device ensures the longevity of your boat's components.

Quick overview

• Prevents electrolytic corrosion
• Blocks low voltage DC currents
• Protects underwater metals like hull and propeller

Features & benefits

The Victron Energy Galvanic Isolator VDI-16A is designed with several features that enhance its functionality and effectiveness:

Useful details

• Diode Configuration: The isolator consists of two diodes connected in an anti-parallel fashion, allowing current to flow in both directions above a threshold voltage of approximately 1.4 Vdc.
• Installation: It is installed directly behind your boat's 230V connection, making it easy to integrate into existing systems.
• Safety Mechanism: If a higher error voltage occurs in the AC circuit, the diodes will allow current through, triggering the residual-current device to break the circuit.

Key specifications (if available)

• Part Number: GDI000016000
• Current Rating: 16A
• Voltage: 230V AC

Usage & maintenance

To ensure optimal performance of the Victron Energy Galvanic Isolator, follow these practical tips:

Practical tips

• Regularly inspect the installation area for any signs of wear or corrosion.
• Ensure that the isolator is properly connected to the shore power supply.
• Test the residual-current device periodically to confirm it is functioning correctly.

Pros and Cons

Pros

• Effectively prevents corrosion of underwater metals.
• Simple installation process.
• Safety features enhance reliability.

Cons

• Not specified
• Not specified
• Not specified
