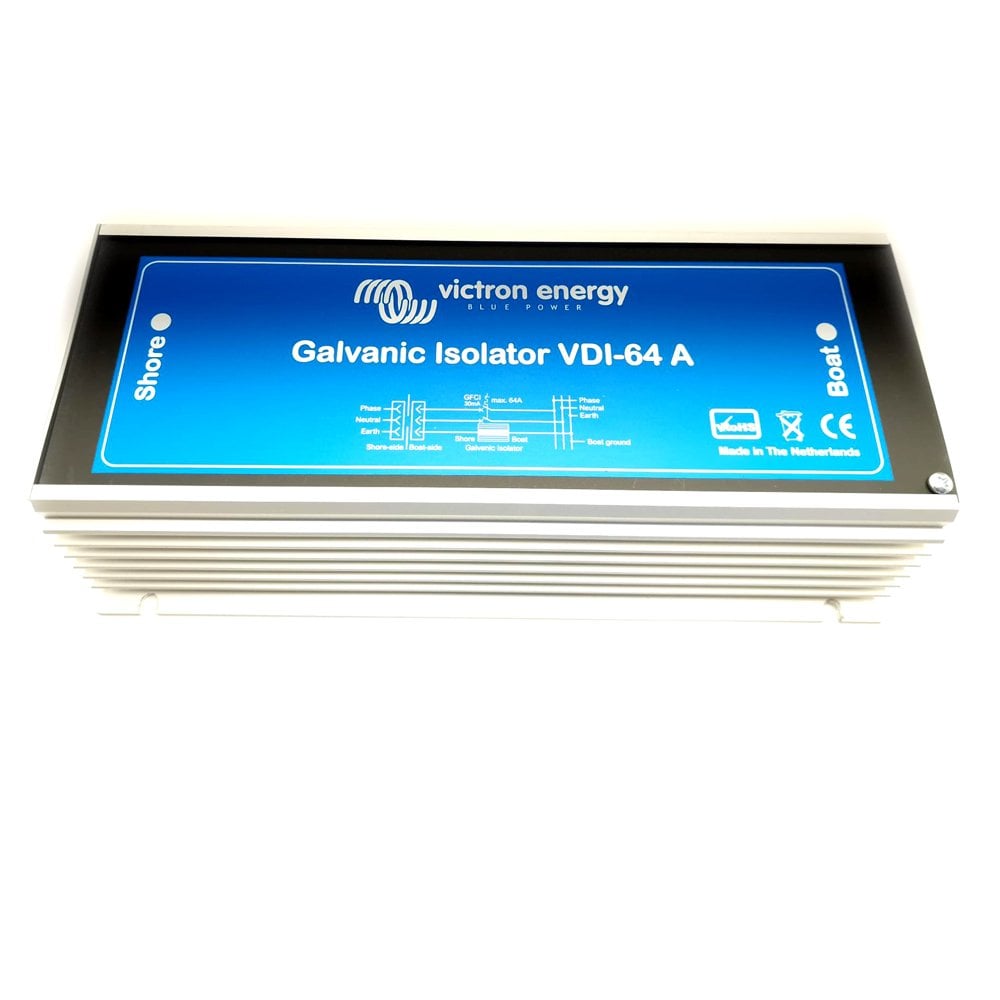

Victron Energy Galvanic Isolator VDI - 64amp The galvanic isolator prevents electrolytic corrosion. It blocks low voltage DC currents that enter your boat via the shore power earth wire. These currents can cause corrosion to the boat’s underwater metals, like the hull, propeller, shaft and so on. The galvanic isolator consists internally of two diodes which are connected in anti-parallel fashion. When they are connected in this way, the diodes allow current in both directions but only above a certain threshold voltage. The voltage at which diodes conduct is about 1.4 Vdc.  Prevents Electrolytic Current Prevent Corrosion to Boats underwater metals 230v AC Anti-Parallel Diodes  The isolator is installed directly behind your boat's 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit. Part Number - GDI000064000

More information

More Information

Table of Contents

• Why it Matters
• Features & Benefits
• Key Specifications
• Usage & Maintenance
• Frequently Asked Questions

Why it Matters

The Victron Energy Galvanic Isolator is an essential component for any marine vessel. It plays a crucial role in protecting your boat from electrolytic corrosion, which can significantly damage underwater metals. This damage can lead to costly repairs and compromise the integrity of your vessel.

Quick Overview

• Prevents electrolytic corrosion
• Blocks low voltage DC currents
• Protects underwater metals like hull and propeller
• Easy installation behind the 230V connection

Features & Benefits

The Victron Energy Galvanic Isolator is designed with advanced technology to ensure maximum protection for your boat. Here are some of its key features and benefits:

Useful Details

• Electrolytic Current Prevention: The isolator effectively blocks low voltage DC currents that can cause corrosion.
• Diode Configuration: It consists of two diodes connected in anti-parallel, allowing current flow only above a certain threshold voltage (approximately 1.4 Vdc).
• Installation: The device is installed directly behind your boat's 230V connection, making it easy to integrate into your existing electrical system.
• Safety Mechanism: In case of a higher error voltage in the AC circuit, the diodes allow current through, triggering the residual-current device to break the circuit.

Key Specifications

• Part Number: GDI000064000
• Current Rating: 64 amps
• Voltage: 230V AC
• Diode Type: Anti-parallel diodes

Usage & Maintenance

To ensure the longevity and effectiveness of the Victron Energy Galvanic Isolator, follow these practical tips:

Practical Tips

• Regularly inspect the isolator for any signs of wear or damage.
• Ensure that the installation is secure and free from moisture.
• Check the electrical connections periodically to maintain optimal performance.
• Consult a marine electrician if you notice any irregularities in your boat's electrical system.

Frequently Asked Questions

• What is a galvanic isolator?
  A galvanic isolator is a device that prevents electrolytic corrosion by blocking low voltage DC currents that can enter your boat via the shore power earth wire.
• How does it work?
  It uses diodes connected in anti-parallel to allow current flow only above a certain voltage threshold, effectively blocking harmful currents.
• Where should I install it?
  The isolator should be installed directly behind your boat's 230V connection for optimal performance.
• Is it easy to install?
  Yes, the installation process is straightforward, but it is advisable to consult a professional if you are unsure.
• What happens if there is a higher error voltage?
  In such cases, the diodes will allow current through, and the residual-current device will break the circuit to ensure safety.
