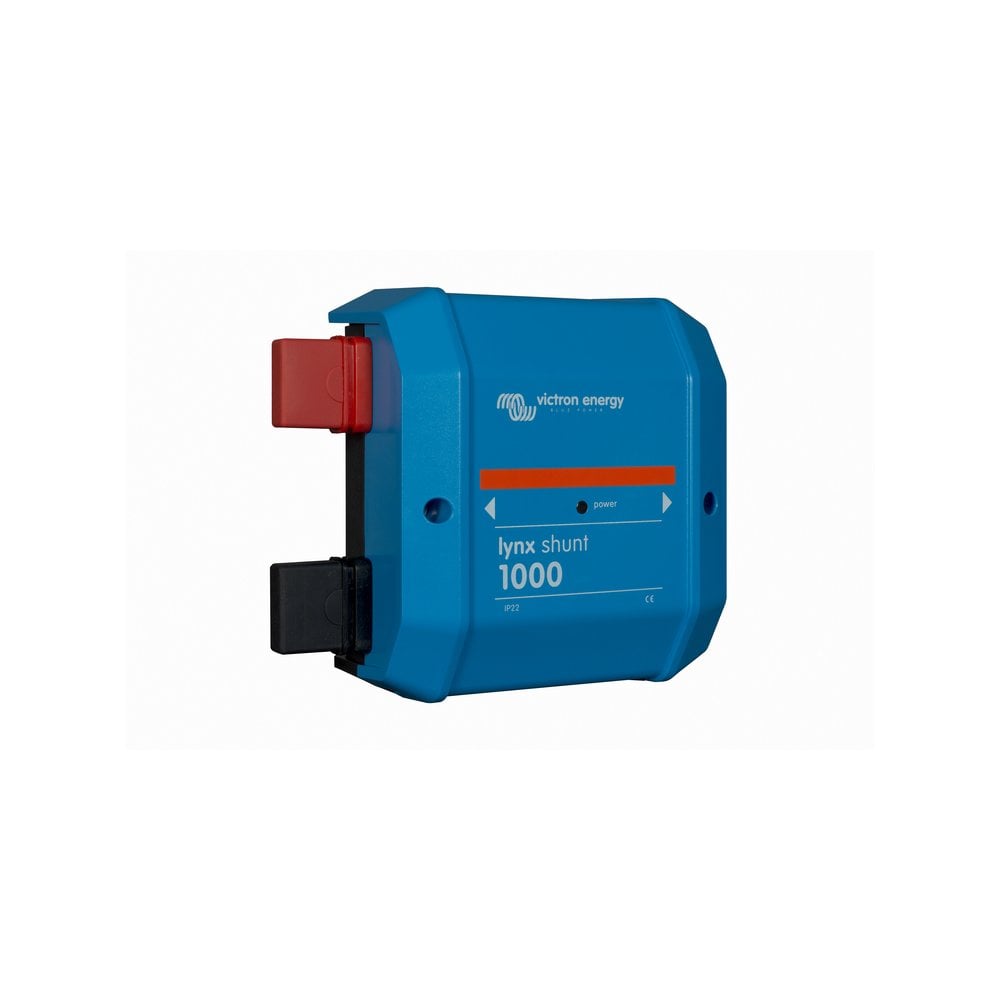

The Lynx Shunt VE.Can for Modular DC Fusing and Distribution  A modular DC Shunt system with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. Part of the modular Lynx distribution system. Quick and Easy Installation Modular and Extendable High Current Bus Bar Uses 325A CNN Fuse - CIP140325000 VE.Can Keep your installation neat and tidy by using the Victron Modular Lynx System use in conjunction with the following parts LYN040102100 - Lynx PowerIn LYN034160200 - Lynx SmartBMS  LYN060102000 - Lynx Distributer CIP140325000 - CNN Fuse For Lynx Shunt

More information

More Information

Table of Contents

• Why it Matters
• Features & Benefits
• Key Specifications
• Usage & Maintenance
• Frequently Asked Questions

Why it Matters

The Victron Lynx Shunt VE.Can Modular DC Distribution System is an essential component for anyone looking to manage their DC electrical systems efficiently. This product not only enhances safety but also improves the overall organization of your electrical setup. By monitoring the status of each fuse, it ensures that your system operates smoothly, reducing the risk of electrical failures.

Quick Overview

• Modular design for easy installation and expansion.
• LED indicators for real-time monitoring of fuse status.
• Supports high current applications with a robust bus bar.
• Compatible with various Victron components for a complete system.

Features & Benefits

Useful Details

The Victron Lynx Shunt VE.Can offers several features that make it a valuable addition to your vehicle's electrical system:

• Modular Design: The system can be easily expanded with additional components, allowing for future upgrades.
• LED Indicators: Each fuse's status is displayed via LED lights, providing immediate feedback on the system's health.
• High Current Bus Bar: Designed to handle high currents, ensuring reliable performance even under heavy loads.
• Quick Installation: The system is designed for straightforward installation, making it accessible for both professionals and DIY enthusiasts.
• Neat and Tidy Setup: Helps keep your installation organized, reducing clutter and improving accessibility.

Key Specifications

While specific technical specifications are not provided, the Lynx Shunt is designed to work with:

• Four DC fuses for modular fusing and distribution.
• Compatible with the CNN Fuse (CIP140325000) rated for 325A.
• Part of a larger modular system that includes components like Lynx PowerIn and Lynx SmartBMS.

Usage & Maintenance

To ensure optimal performance of the Victron Lynx Shunt VE.Can, consider the following tips:

• Regularly check the LED indicators to monitor the status of each fuse.
• Keep the installation area clean and free from debris to prevent electrical issues.
• Follow the manufacturer's guidelines for installation and usage to maintain safety standards.
• Periodically inspect connections and components for wear or damage.

Frequently Asked Questions

1. What is the purpose of the Victron Lynx Shunt VE.Can?

The Lynx Shunt is designed to monitor and manage DC fuses in a modular distribution system, enhancing safety and organization.

2. How many DC fuses can the Lynx Shunt accommodate?

It can accommodate up to four DC fuses.

3. Is the installation process complicated?

No, the Lynx Shunt is designed for quick and easy installation.

4. What type of fuse is compatible with the Lynx Shunt?

The system uses the CNN Fuse (CIP140325000) rated for 325A.

5. Can I expand the system later?

Yes, the modular design allows for easy expansion with additional Victron components.
