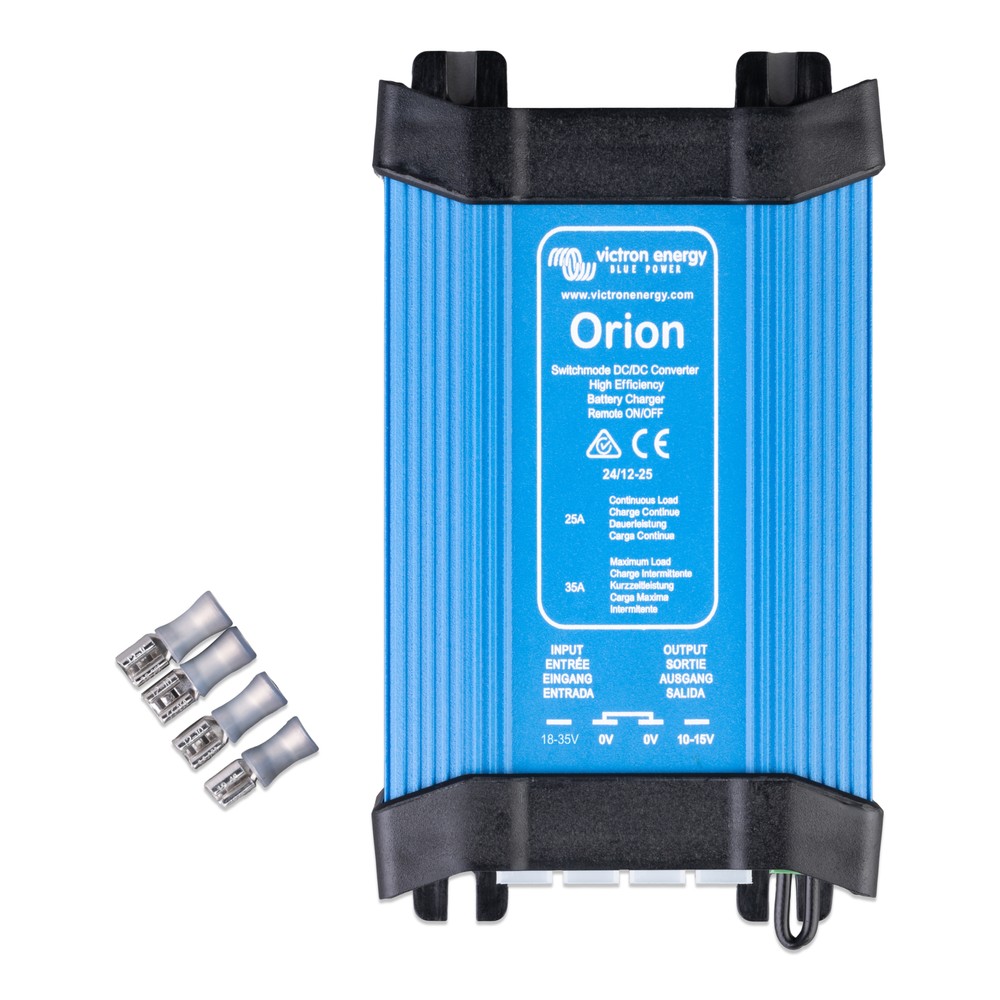

Victron Orion 24/12 25A DC-DC converter IP20 | ORI241225020, Car Parts

Car Accessories

Orion 24v to 12v 25 amp DC-DC Converter Non-isolated High power Remote on/off connector The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.

More information

More Information

Table of Contents

• Why it Matters
• Features & Benefits
• Key Specifications
• Usage & Maintenance
• Frequently Asked Questions

Why it Matters

The Victron Orion 24/12 25A DC-DC converter is an essential component for vehicles operating on a 24V system that require 12V power for various accessories. This device ensures that your 12V devices receive the necessary power without compromising the integrity of the 24V system. It is particularly useful for charging 12V batteries in vehicles that primarily operate on 24V, making it a versatile solution for automotive applications.

Features & Benefits

Quick Overview

• Non-Isolated Design: Efficiently converts 24V to 12V.
• High Power Output: Provides up to 25A of current.
• Remote On/Off Connector: Simplifies control of the device.
• Adjustable Output: Can be used as a battery charger.
• Parallel Connection: Up to five units can be connected for increased output.

Useful Details

The Victron Orion converter is designed for high performance and reliability. Its non-isolated design allows for efficient power conversion, making it ideal for automotive applications. The remote on/off feature eliminates the need for high current switches, allowing for easier installation and operation. This feature can be controlled using a low power switch or the vehicle's engine run/stop switch, enhancing convenience.

Additionally, the adjustable output capability means that this converter can also function as a battery charger. This is particularly beneficial for maintaining 12V starter or accessory batteries in a 24V system, ensuring that all components remain charged and operational.

Practical Tips

• Ensure proper installation to avoid any electrical issues.
• Regularly check connections for corrosion or wear.
• Use appropriate fuses to protect the system from overloads.
• Consult the manual for specific wiring instructions and safety precautions.

Key Specifications

While specific technical specifications are not provided, the Victron Orion 24/12 25A DC-DC converter is designed to handle a maximum output of 25A, making it suitable for various automotive applications. Its ability to operate in parallel with other units allows for scalability, accommodating increased power needs as required.

Usage & Maintenance

To ensure optimal performance, regular maintenance of the Victron Orion converter is recommended. This includes checking the connections, ensuring that the remote on/off feature is functioning correctly, and verifying that the output voltage remains stable. If used as a battery charger, monitor the charging process to prevent overcharging.

For installation, follow the guidelines provided in the manual. Proper wiring and connection are crucial for the safe operation of the device. If you encounter any issues, refer to the troubleshooting section of the manual or consult a professional for assistance.

Frequently Asked Questions

• Can the Victron Orion be used with any 24V system?
  Yes, it is designed to work with standard 24V systems.
• How do I connect multiple units in parallel?
  Refer to the manual for detailed wiring instructions.
• Is the output adjustable?
  Yes, the output can be adjusted for various applications.
• What type of switch can I use for the remote on/off feature?
  A low power switch or the engine run/stop switch can be used.
• Can I use this converter to charge a 12V battery?
  Yes, it can function as a battery charger for 12V batteries.
