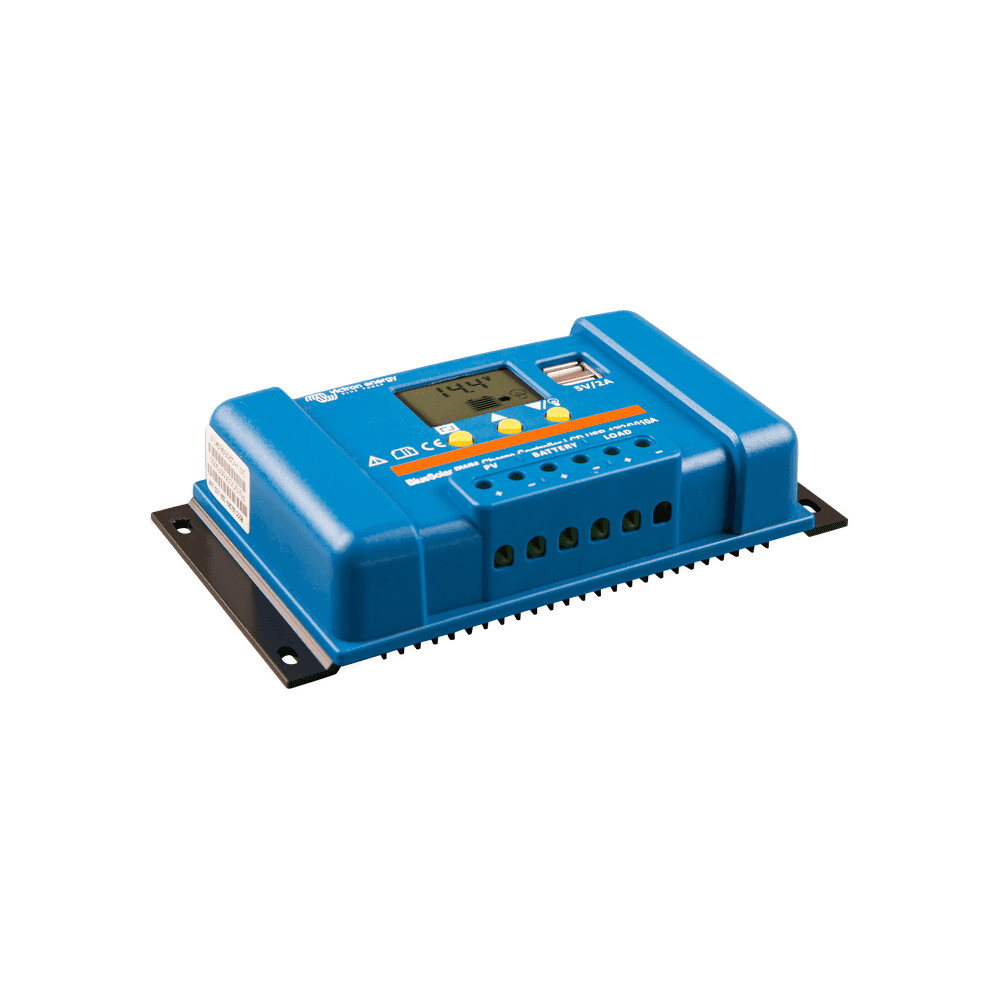

Victron Solar Charge Controller Blue Solar PWM with LCD and 2 USB ports 12/24V 30A SCC010030050, Car Accessories

Car Accessories

Victron Blue Solar PWM Charge Controller with LCD and USB 12/14 30A The BlueSolar Charge Controller uses Pulse Width Modulation (PWM) charge voltage control with a programable charge control algorithm. This BlueSolar controller is a simple and cost effective way to add a solar panel to your current system. Although it does not have the same features as the SmartSolar range it will provide the connectivity and control required to create a solar power/battery storage system. Features  Liquid Crystal Display Two 5 Volt USB outputs Lighting control function, fully programmable   Three stage battery charging (bulk, absorption, float), fully programmable Load output with low voltage and manual disconnect (programmable) Load output protected against over load and short circuit Protected against reverse polarity connection of the solar panels and/or battery Prevent Battery Over-Discharge Load output over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

More information

More Information

Table of Contents

• Why it matters
• Features & benefits
• Key specifications
• Usage & maintenance
• Frequently Asked Questions

Why it matters

The Victron Solar Charge Controller Blue Solar PWM is an essential component for anyone looking to harness solar energy efficiently. This device not only regulates the voltage and current coming from solar panels but also ensures that your batteries are charged correctly, prolonging their lifespan. With the increasing reliance on renewable energy sources, having a reliable charge controller is crucial for optimizing solar power systems.

Quick overview

• Type: PWM Charge Controller
• Voltage: 12/24V
• Current: 30A
• USB Ports: 2 x 5 Volt
• Display: LCD

Features & benefits

The Victron Blue Solar PWM Charge Controller comes packed with features that enhance its usability and efficiency. Here are some of the key features:

Useful details

• Programmable Charge Control: The controller uses a programmable charge control algorithm, allowing for customization based on specific battery types.
• Three-Stage Charging: It offers bulk, absorption, and float charging stages, ensuring optimal battery health.
• LCD Display: The integrated LCD provides real-time information about the charging status and battery levels.
• USB Outputs: Two 5 Volt USB ports allow for charging small devices directly from the controller.
• Lighting Control Function: Fully programmable lighting control function adds versatility to your solar setup.
• Over-Discharge Protection: Prevents battery over-discharge by disconnecting loads when the battery reaches a pre-set voltage.
• Reverse Polarity Protection: Protects against incorrect connections of solar panels and batteries.
• Overload and Short Circuit Protection: Ensures safety by protecting the load output against overloads and short circuits.

Pros and Cons

• Pros:
  • Cost-effective solution for solar power systems.
  • Easy to install and use.
  • Customizable settings for different battery types.
  • Real-time monitoring through LCD display.
  • Multiple protection features enhance safety.
• Cons:
  • Limited features compared to higher-end models.
  • Not suitable for very large solar setups.
  • Requires manual adjustments for optimal performance.

Key specifications

While specific technical specifications are not detailed, the following general specifications can be noted:

• Model: SCC010030050
• Voltage Compatibility: 12V/24V
• Maximum Current: 30A
• USB Output: 2 x 5V
• Charging Stages: Bulk, Absorption, Float

Usage & maintenance

To ensure optimal performance of the Victron Solar Charge Controller, consider the following tips:

• Installation: Follow the manufacturer’s guidelines for installation to avoid any damage or malfunction.
• Regular Monitoring: Check the LCD display regularly to monitor battery levels and charging status.
• Adjust Settings: Make necessary adjustments to the programmable settings based on your battery type and usage requirements.
• Keep Clean: Ensure that the controller is kept clean and free from dust to maintain efficiency.
• Check Connections: Regularly inspect all connections for signs of wear or corrosion.

Frequently Asked Questions

1. What is a PWM charge controller?
   A PWM (Pulse Width Modulation) charge controller regulates the voltage and current coming from solar panels to charge batteries efficiently.
2. Can I use this controller with different battery types?
   Yes, the Victron Blue Solar PWM Charge Controller is programmable, allowing it to be customized for various battery types.
3. How do I prevent battery over-discharge?
   Connect all loads to the load output of the controller, which will disconnect them when the battery reaches a pre-set voltage.
4. What happens if I connect the solar panels incorrectly?
   The controller is equipped with reverse polarity protection to prevent damage from incorrect connections.
5. Is this controller suitable for large solar systems?
   While it is effective for small to medium systems, it may not be suitable for very large solar setups.
