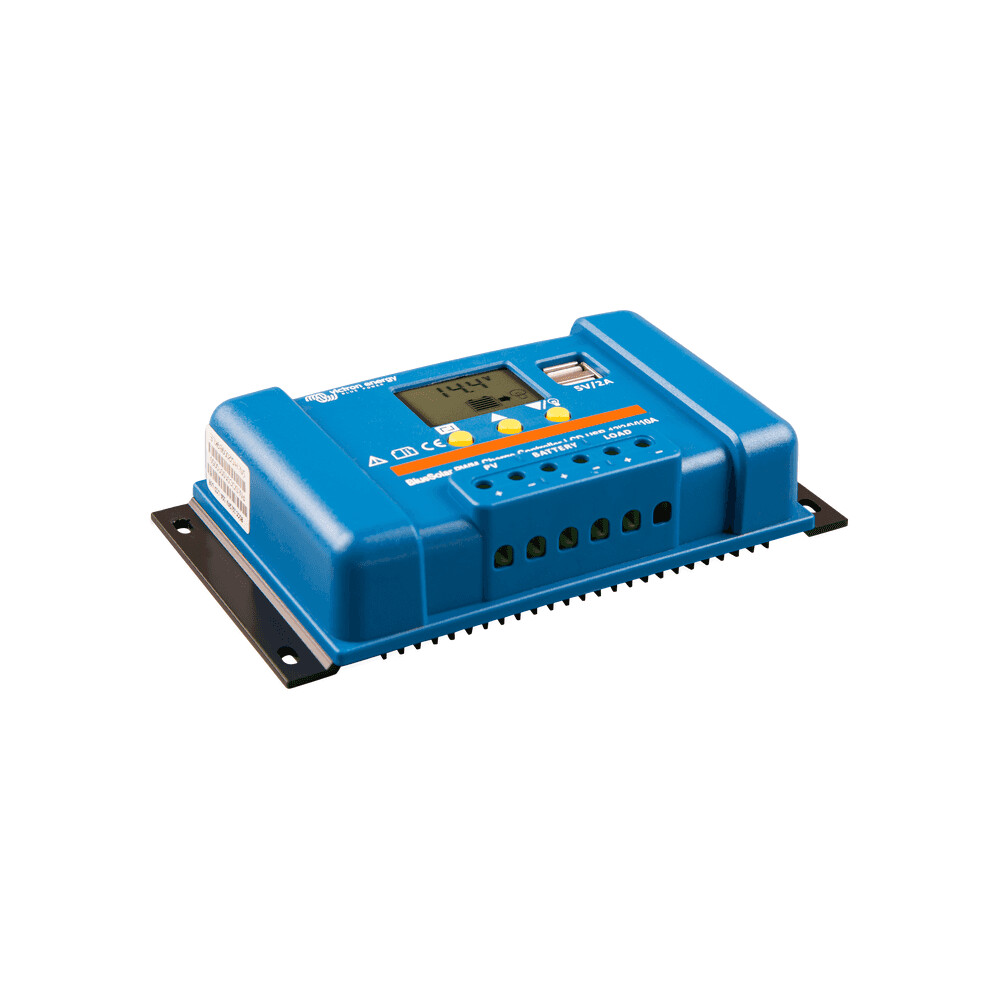

Victron Solar Charge Controller BlueSolar PWM with LCD and 2 USB ports 12/24V 10A SCC010010050, Car Accessories

Car Accessories

Victron BlueSolar PWM Charge Controller with LCD and USB 12/14 10A The BlueSolar Charge Controller uses Pulse Width Modulation (PWM) charge voltage control with a programable charge control algorithm. This BlueSolar controller is a simple and cost effective way to add a solar panel to your current system. Although it does not have the same features as the SmartSolar range it will provide the connectivity and control required to create a solar power/battery storage system. Features  Liquid Crystal Display Two 5 Volt USB outputs Lighting control function, fully programmable   Three stage battery charging (bulk, absorption, float), fully programmable Load output with low voltage and manual disconnect (programmable) Load output protected against over load and short circuit Protected against reverse polarity connection of the solar panels and/or battery Prevent Battery Over-Discharge Load output over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

More information

More Information

Table of Contents

• Why it Matters
• Features & Benefits
• Key Specifications
• Usage & Maintenance
• Frequently Asked Questions

Why it Matters

The Victron Solar Charge Controller BlueSolar PWM is an essential component for anyone looking to harness solar energy effectively. With its ability to manage battery charging and prevent over-discharge, it ensures that your solar power system operates efficiently. This device is particularly beneficial for users who want a straightforward solution for integrating solar panels into their existing systems.

Quick Overview

• Type: PWM Charge Controller
• Voltage: 12/24V
• Current: 10A
• USB Ports: 2 x 5 Volt
• Display: Liquid Crystal Display (LCD)

Features & Benefits

The Victron BlueSolar PWM Charge Controller is packed with features that enhance its usability and effectiveness:

• Programmable Charge Control: The controller uses a programmable charge control algorithm, allowing users to customize settings according to their specific needs.
• Three-Stage Battery Charging: It offers bulk, absorption, and float charging stages, ensuring optimal battery health and longevity.
• Lighting Control Function: Fully programmable lighting control adds versatility to your solar setup.
• Load Output Protection: The load output is protected against overload and short circuits, enhancing safety.
• Reverse Polarity Protection: Prevents damage from incorrect connections of solar panels or batteries.
• Over-Discharge Prevention: The controller disconnects loads when the battery reaches a pre-set voltage, protecting the battery from deep discharge.
• USB Outputs: Two USB ports allow for charging devices directly from the controller, adding convenience.

Useful Details

Understanding the features of the Victron BlueSolar PWM Charge Controller can help you make the most of your solar power system:

• The LCD provides real-time information about battery status and charging conditions.
• Adjustable connect and disconnect voltages allow for tailored performance based on battery type and usage.
• Compatible with various battery types, making it a versatile choice for different applications.

Key Specifications

While specific technical specifications are not detailed, the following key points summarize the controller's capabilities:

• Voltage Compatibility: 12V and 24V systems
• Maximum Current: 10A
• USB Output: 2 ports at 5V
• Charging Stages: Bulk, absorption, float
• Protection Features: Overload, short circuit, reverse polarity

Usage & Maintenance

To ensure optimal performance of the Victron BlueSolar PWM Charge Controller, consider the following tips:

• Installation: Follow the manufacturer's guidelines for installation to avoid damage and ensure safety.
• Regular Monitoring: Check the LCD display regularly to monitor battery health and charging status.
• Cleaning: Keep the controller clean and free from dust to maintain functionality.
• Firmware Updates: If applicable, check for firmware updates to enhance performance and features.

Frequently Asked Questions

Here are some common questions regarding the Victron BlueSolar PWM Charge Controller:

• What is the maximum current output? The maximum current output is 10A.
• Can I use this controller with a 24V system? Yes, it is compatible with both 12V and 24V systems.
• How does the over-discharge protection work? The controller disconnects loads when the battery voltage drops to a pre-set level, preventing deep discharge.
• Is it easy to install? Yes, it is designed for straightforward installation, but always follow the manufacturer's instructions.
• What types of batteries can I use? It is compatible with various battery types, but check the specifications for best results.
