Victron Solar Charge Controller BlueSolar PWM with LCD and 2 USB ports 12/24V 20A SCC010020050, Car Accessories

Car Accessories

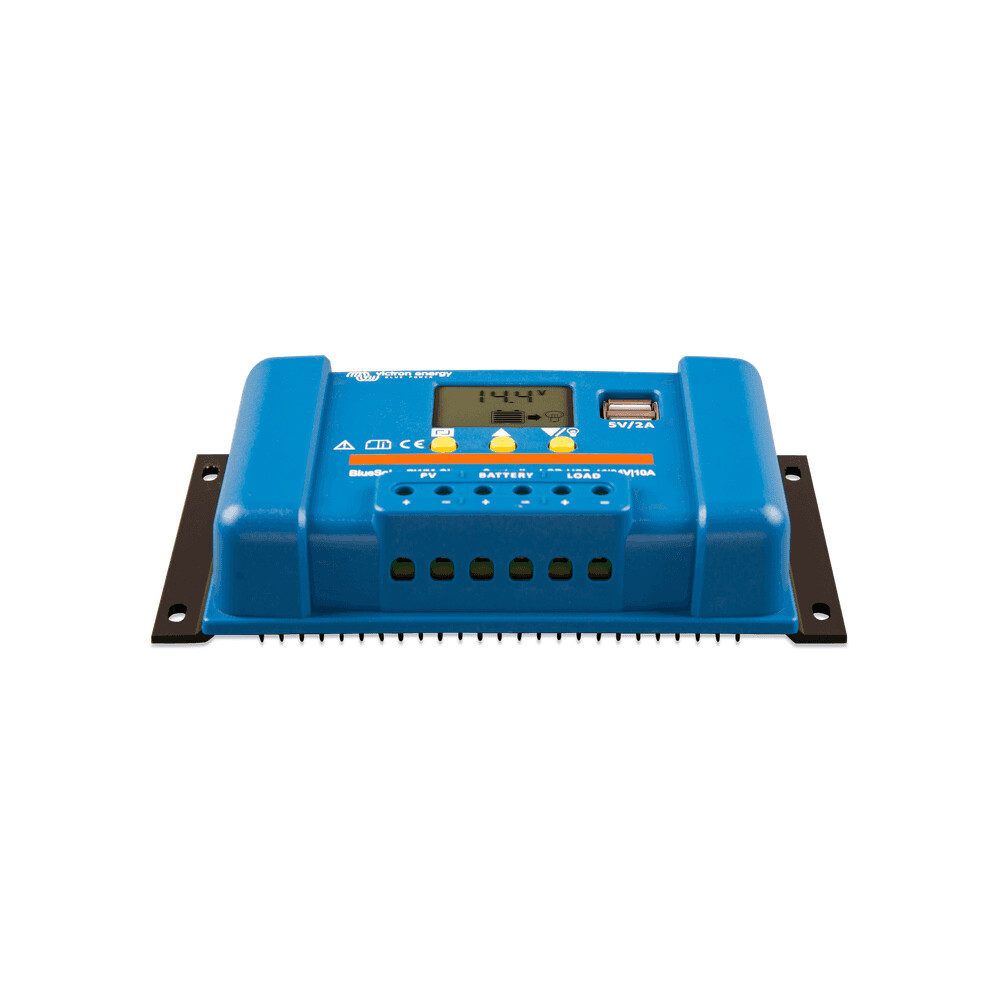

Victron BlueSolar PWM Charge Controller with LCD and USB 12/14 20A The BlueSolar Charge Controller uses Pulse Width Modulation (PWM) charge voltage control with a programable charge control algorithm. This BlueSolar controller is a simple and cost effective way to add a solar panel to your current system. Although it does not have the same features as the SmartSolar range it will provide the connectivity and control required to create a solar power/battery storage system. Features  Liquid Crystal Display Two 5 Volt USB outputs Lighting control function, fully programmable   Three stage battery charging (bulk, absorption, float), fully programmable Load output with low voltage and manual disconnect (programmable) Load output protected against over load and short circuit Protected against reverse polarity connection of the solar panels and/or battery Prevent Battery Over-Discharge Load output over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

More information

More Information

Table of Contents

• Why it Matters
• Features & Benefits
• Key Specifications
• Usage & Maintenance
• Frequently Asked Questions

Why it Matters

The Victron Solar Charge Controller BlueSolar PWM is an essential component for anyone looking to harness solar energy effectively. With the increasing demand for renewable energy solutions, having a reliable charge controller can significantly enhance the efficiency of your solar power system.

This charge controller is particularly beneficial for those who want to integrate solar panels into their existing systems without breaking the bank. Its simplicity and cost-effectiveness make it a popular choice among users.

Features & Benefits

Quick Overview

• Liquid Crystal Display: Provides real-time information about the charging status and battery levels.
• Two USB Outputs: Allows for charging of devices directly from the controller.
• Programmable Lighting Control: Offers flexibility in managing lighting systems.
• Three-Stage Battery Charging: Ensures optimal battery health through bulk, absorption, and float charging stages.
• Load Output Protection: Prevents over-discharge and short circuits, enhancing safety.

Useful Details

The BlueSolar PWM Charge Controller is designed to be user-friendly and efficient. Here are some key features that stand out:

• Programmable Settings: Users can adjust the connect and disconnect voltages according to their specific needs.
• Over-Discharge Protection: The load output disconnects when the battery reaches a pre-set voltage, preventing damage.
• Reverse Polarity Protection: Safeguards against incorrect connections of solar panels or batteries.

Practical Tips

• Ensure proper installation to maximize efficiency and safety.
• Regularly check the LCD display for updates on battery status and charging performance.
• Consult the manual for specific programming instructions and settings adjustments.

Key Specifications

• Model: Victron BlueSolar PWM Charge Controller
• Voltage: 12/24V
• Current Rating: 20A
• USB Outputs: 2 x 5 Volt
• Charging Stages: Bulk, Absorption, Float

Usage & Maintenance

To ensure the longevity and efficiency of the Victron BlueSolar PWM Charge Controller, consider the following maintenance tips:

• Keep the unit clean and free from dust and debris.
• Check connections regularly to ensure they are secure and free from corrosion.
• Monitor the performance through the LCD display and make adjustments as necessary.

Frequently Asked Questions

• What is the maximum solar panel size I can use? Not specified.
• Can I use this controller with a 24V system? Yes, it supports both 12V and 24V systems.
• Is it easy to install? Yes, it is designed for straightforward installation.
• What kind of batteries can I use? Not specified.
• Does it come with a warranty? Not specified.
