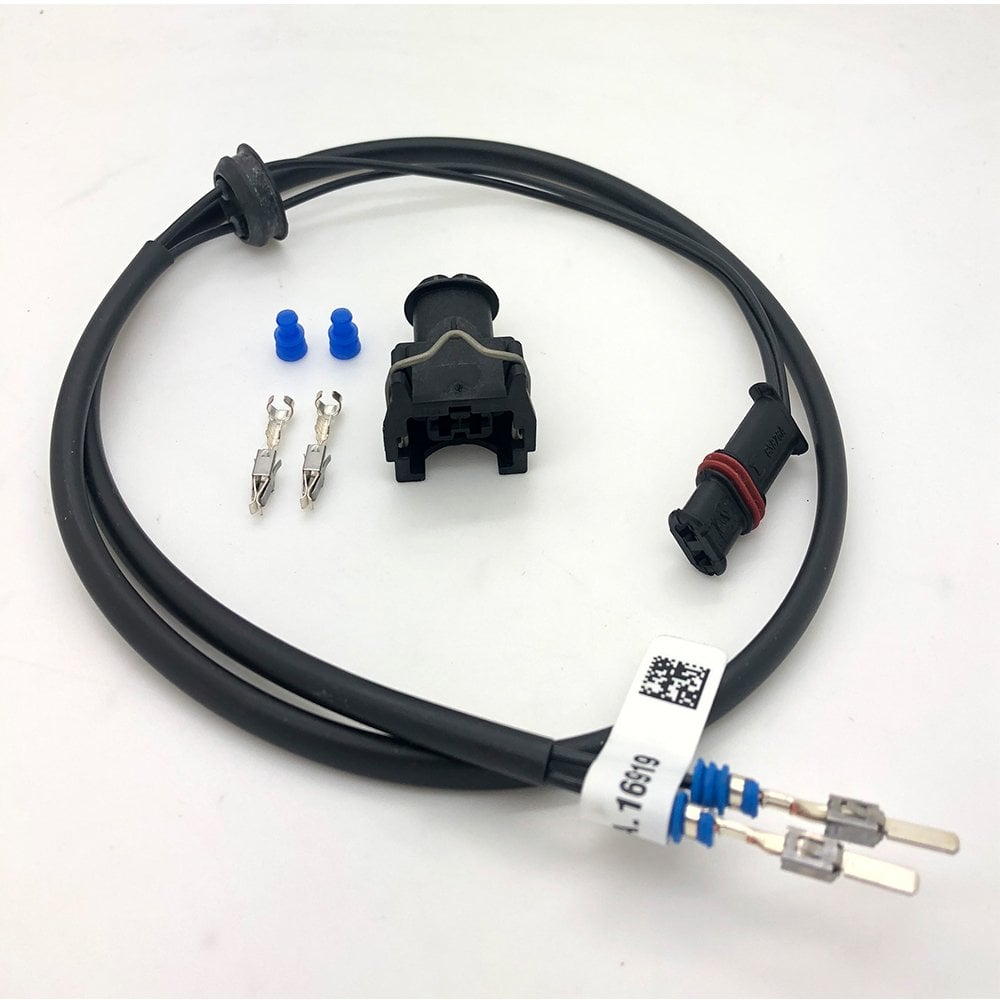

Webasto Fuel Pump Wiring harness Air Top Evo 40/55 | 9029425A, Car Parts

Car Accessories

Webasto Fuel Pump Wiring harness kit Ecu connection to external fuel pump connection under heater.  Suitable for the following Webasto air heaters Airtop 3500Airtop 5000Airtop 3500STAirtop 5000STAirtop Evo3900Airtop Evo5500Airtop Evo40Airtop Evo55

More information

More information

Table of Contents

• Why it matters
• Features & benefits
• Key specifications
• Usage & maintenance
• Frequently Asked Questions

Why it matters

The Webasto Fuel Pump Wiring Harness is an essential component for connecting your Webasto air heater to an external fuel pump. Proper wiring ensures efficient operation and reliability of your heating system, especially in colder climates where performance is crucial. This harness is designed to facilitate seamless communication between the heater and the fuel pump, ensuring that your vehicle remains warm and comfortable during harsh weather conditions.

Features & benefits

Quick overview

• Compatible with multiple Webasto air heater models.
• Facilitates easy connection to external fuel pumps.
• Designed for durability and reliability.
• Ensures optimal performance of your heating system.
• Helps maintain a comfortable environment in your vehicle.

Useful details

This wiring harness is suitable for the following Webasto air heaters:

• Airtop 3500
• Airtop 5000
• Airtop 3500ST
• Airtop 5000ST
• Airtop Evo 3900
• Airtop Evo 5500
• Airtop Evo 40
• Airtop Evo 55

Each model has specific requirements, and this harness is designed to meet those needs effectively. It ensures that the connection between the ECU and the fuel pump is secure, minimizing the risk of malfunctions.

Practical tips

• Always check compatibility with your specific heater model before installation.
• Ensure all connections are secure to prevent any fuel leaks.
• Regularly inspect the wiring harness for signs of wear or damage.
• Consult the installation manual for detailed instructions.
• If unsure, seek professional assistance for installation.

Key specifications

Not specified.

Usage & maintenance

To ensure the longevity and efficiency of your Webasto Fuel Pump Wiring Harness, follow these maintenance tips:

• Inspect the harness regularly for any signs of wear or damage.
• Keep the connections clean and free from corrosion.
• Ensure that the wiring is not exposed to excessive heat or moisture.
• Follow the manufacturer's guidelines for installation and maintenance.

Frequently Asked Questions

1. What models is this wiring harness compatible with?

This wiring harness is compatible with various Webasto air heater models, including Airtop 3500, Airtop 5000, Airtop 3500ST, Airtop 5000ST, Airtop Evo 3900, Airtop Evo 5500, Airtop Evo 40, and Airtop Evo 55.

2. How do I install the wiring harness?

Installation involves connecting the harness to the ECU and the external fuel pump. It is recommended to consult the installation manual or seek professional assistance if you are unsure.

3. What should I do if I notice damage to the wiring?

If you notice any damage, it is crucial to replace the wiring harness immediately to prevent any operational issues or safety hazards.

4. Can I use this harness with other brands of heaters?

This wiring harness is specifically designed for Webasto air heaters and may not be compatible with other brands.

5. Is professional installation recommended?

While installation can be done by a knowledgeable individual, professional installation is recommended to ensure safety and proper functionality.
